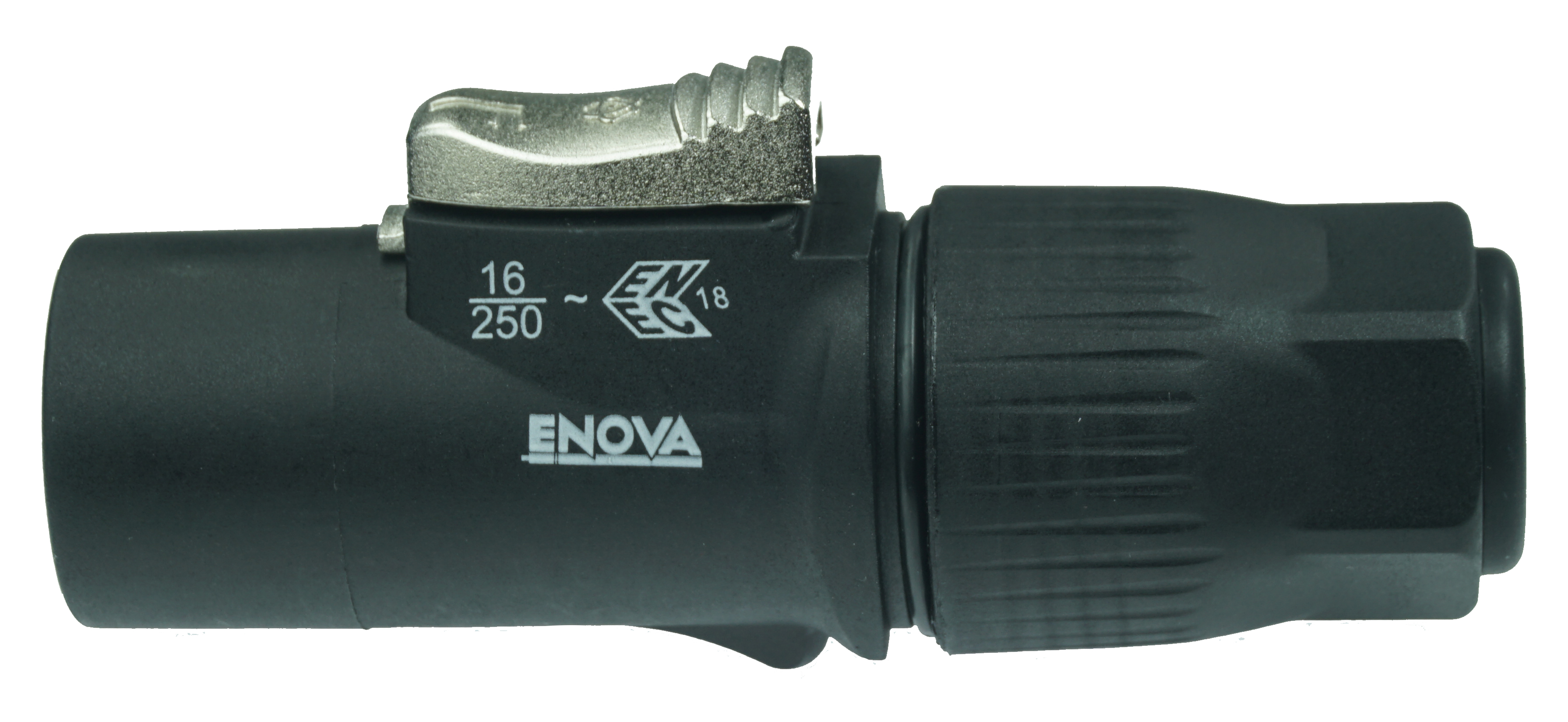

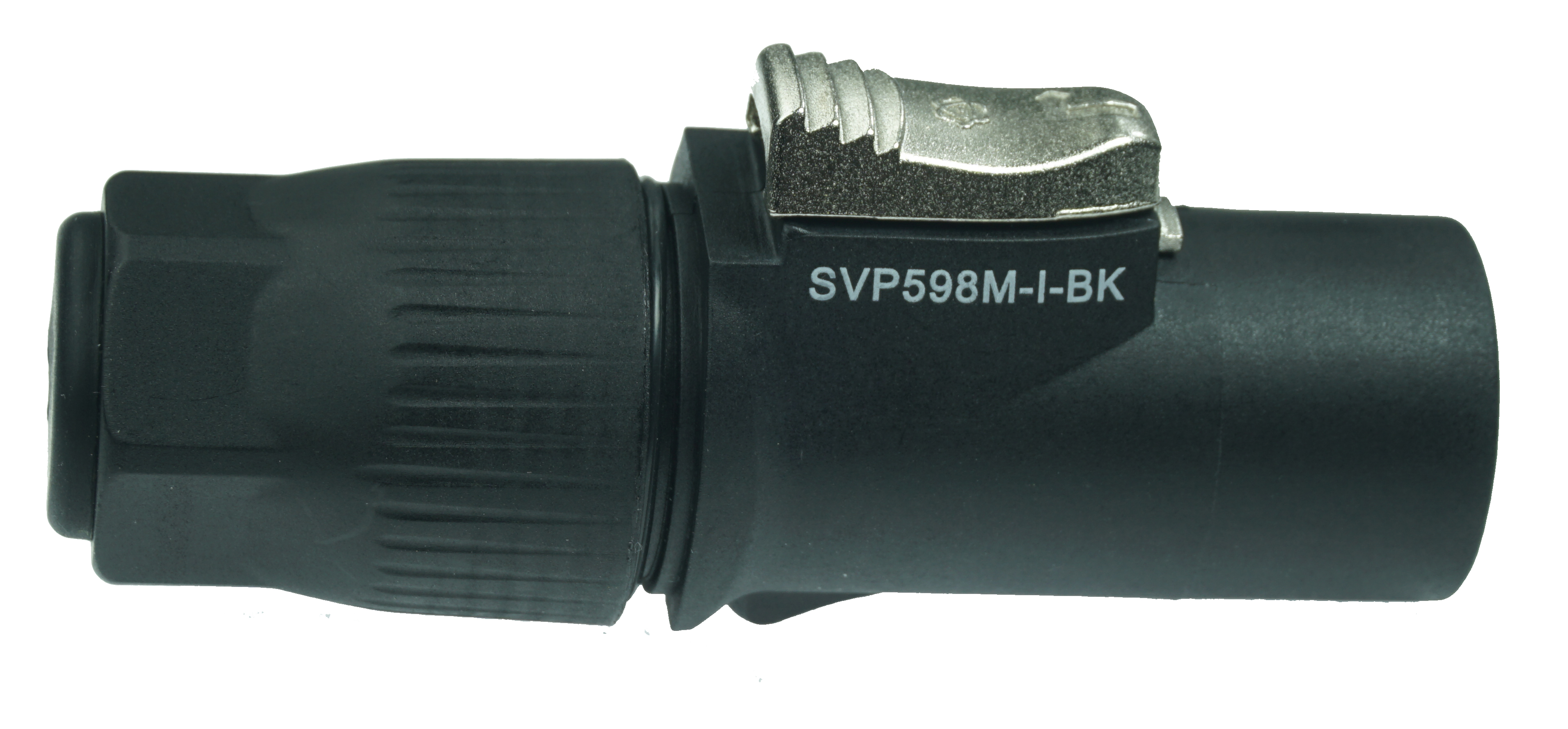

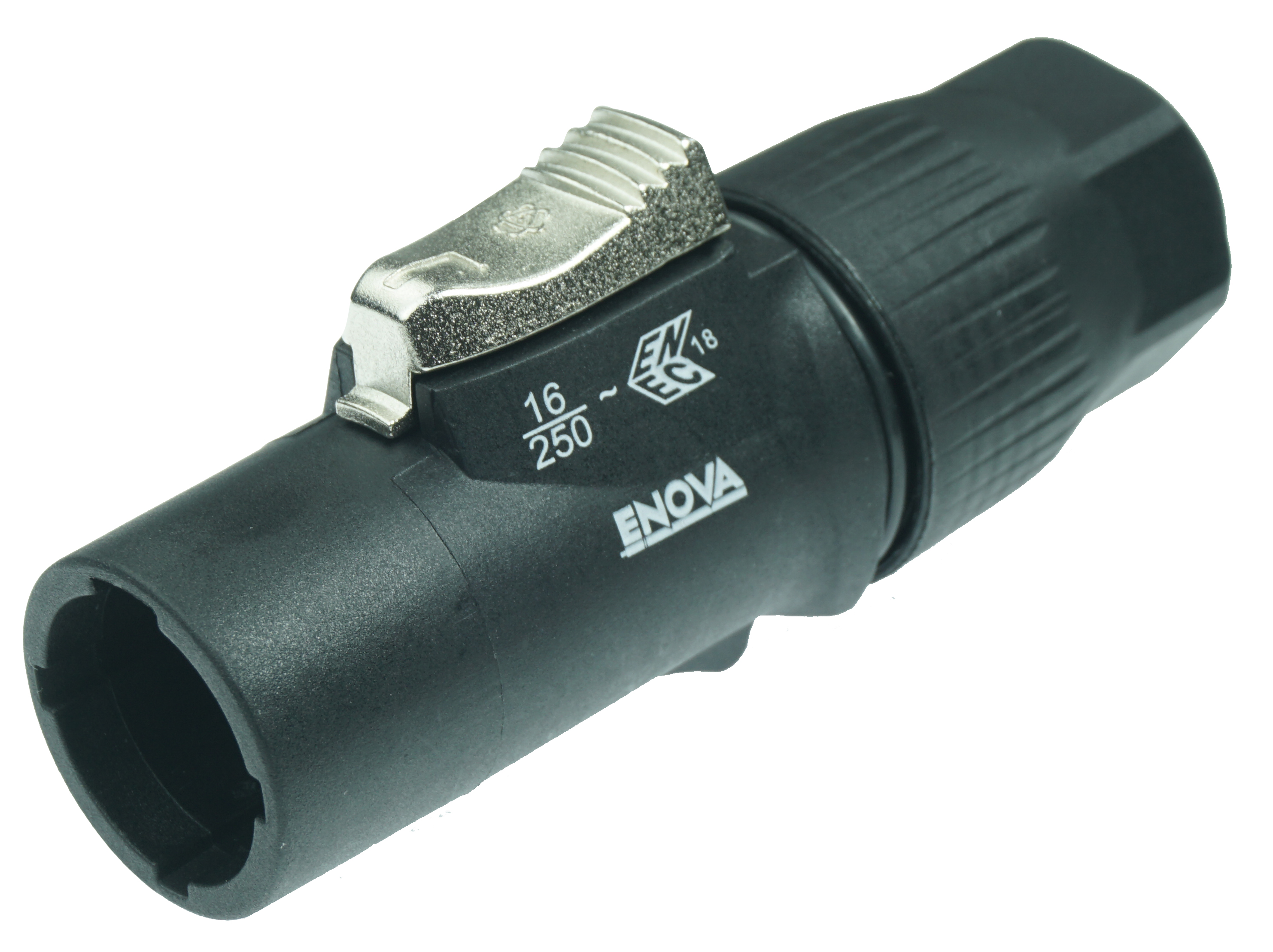

Product information "Black 16A CBC Male Power Connector"

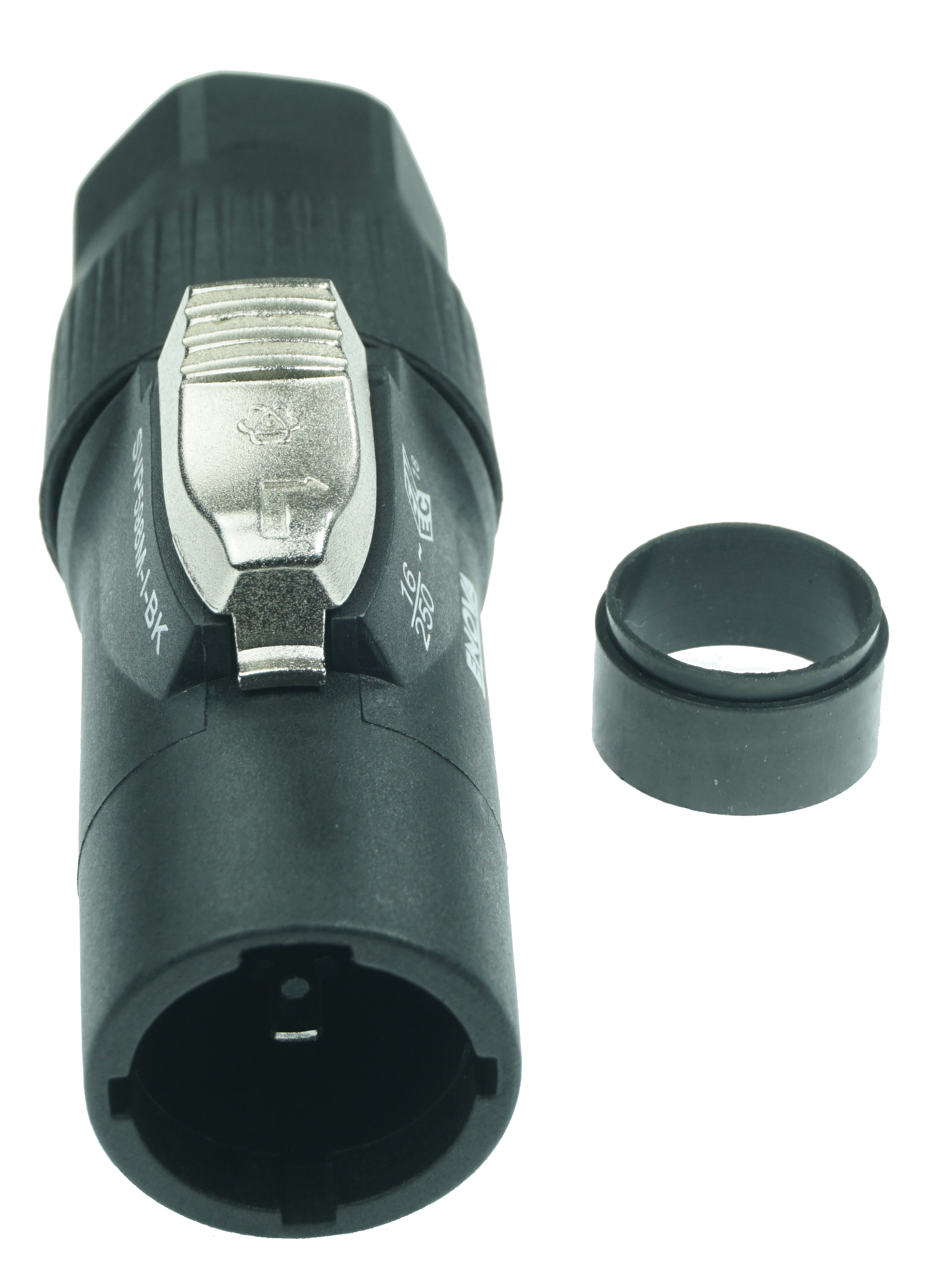

16A Power Out Male Connector supply two cable rings for assembling OD 8.5mm to 15mm various cable diameter. This IP65 waterproof power connector with breaking capacity (CBC), it can be connected or disconnected under load or live.
•16A Power Out Male Connector • With two cable clamp ring • M size for O.D.: Ø8.5~11mm(standard) • L size for O.D.: Ø12~15mm • IEC 60302-1 ENEC standard certification passed • CBC current breaking capacity connector • Single phase 250V 16A • Screw push-pull copper block stamping piece contact body structure • PE pin priority retardant grade • IP65 waterproof • 94V-0/HB flame retardant grade
Series:
PO-Serie
Version (Plug / Chassis):
Chassis version
Connector type:
Power
Connection mode:
Push-button latch
Number of contacts:
3
Connector housing color:
Nickel
Cable connection size min. in AWG:
12 AWG
Wiring mode:
Solder contact
Number of mounting holes:
2
Working temperature minimum:
-30°
Working temperature maximum:
+80°
Plug cycle:
≥ 500
IP protection class according to EN60529 2000:
IP65
ROHS according to EN62321-1:
Yes
Country of origin:
China
high voltage rating (VAC):
2500 V
max. Rated current (A):
16 A
Contact resistance:
≤ 3 mΩ
POS packaging:
No
Markets:
Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Lighting, LED exterior display, System integrator, Power supply, power storage, Outdoor lighting
