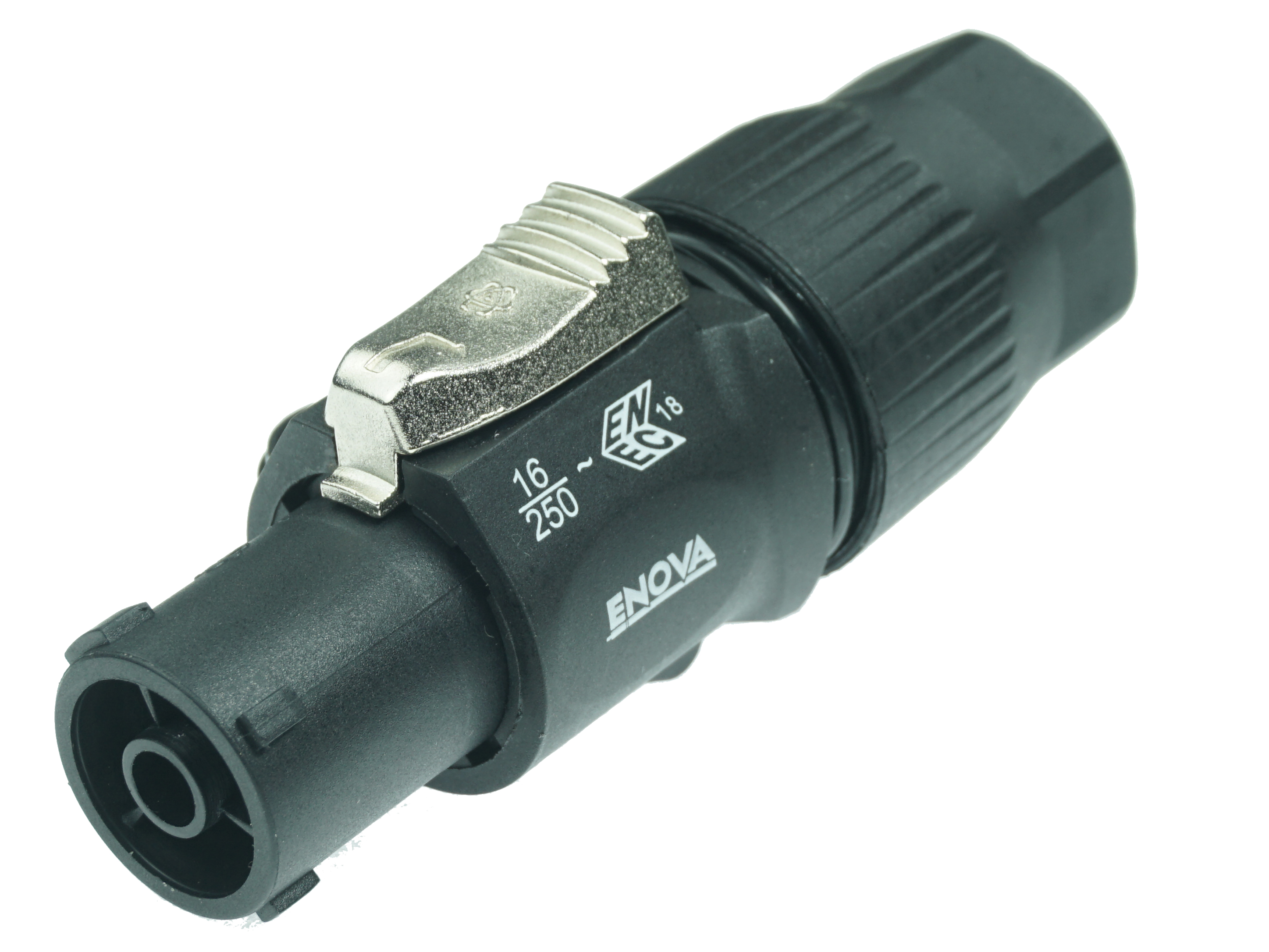

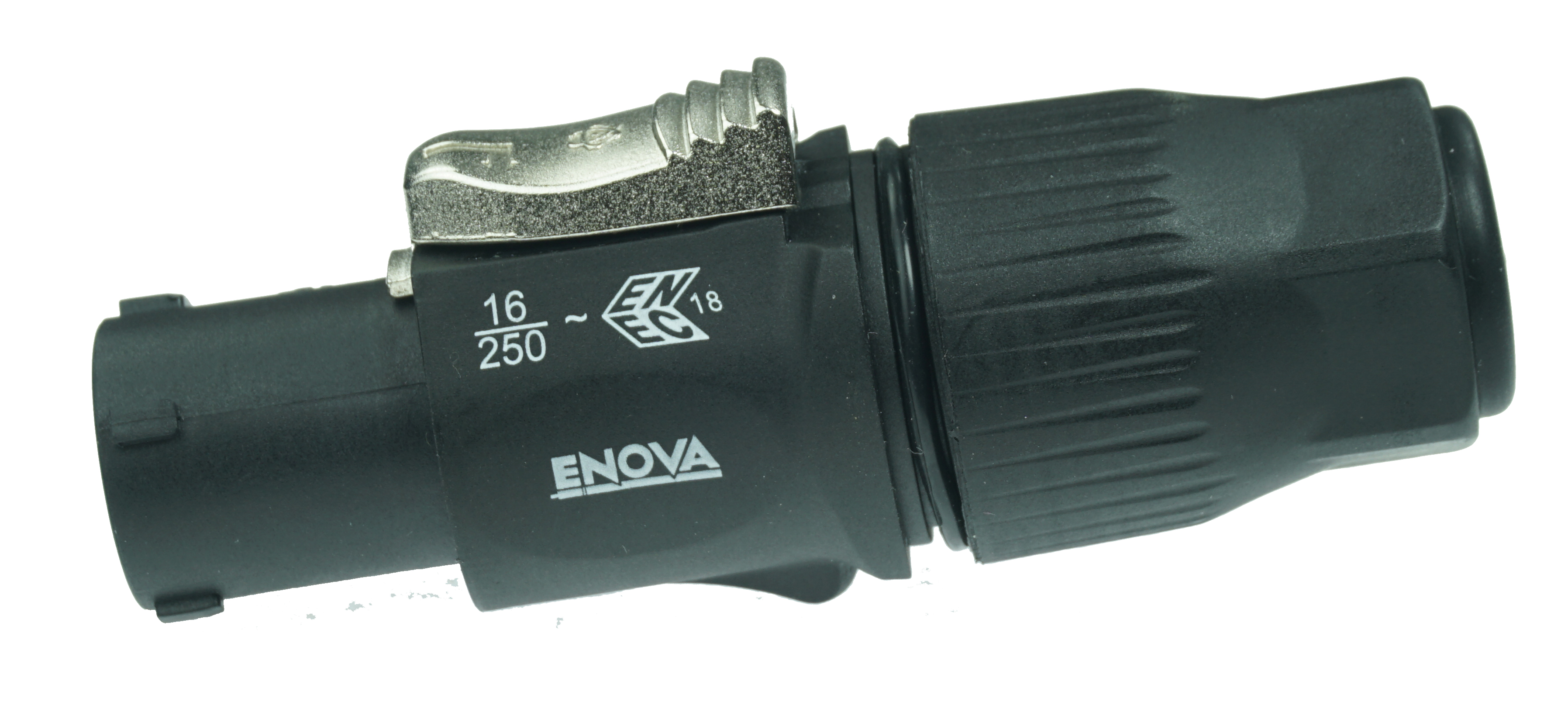

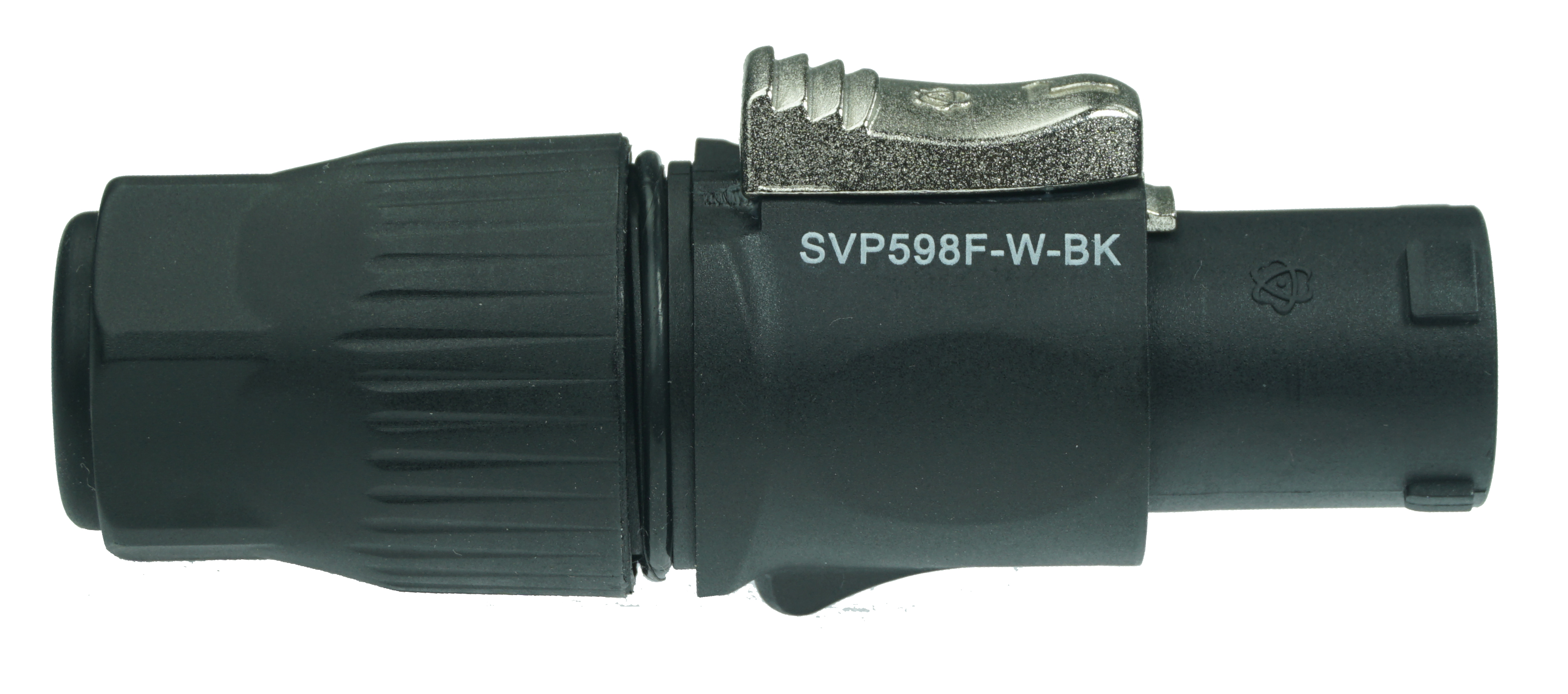

Product information "Black 16A CBC Female Power Connector"
16A Locking power connector which can be connected or disconnected under a load or live, has the advantage of the locking system used for power supplies. The sealed construction and weatherproof of lockable female power connector is suitable wherever a very rugged solution in combination in order to guarantee a safe power connection.

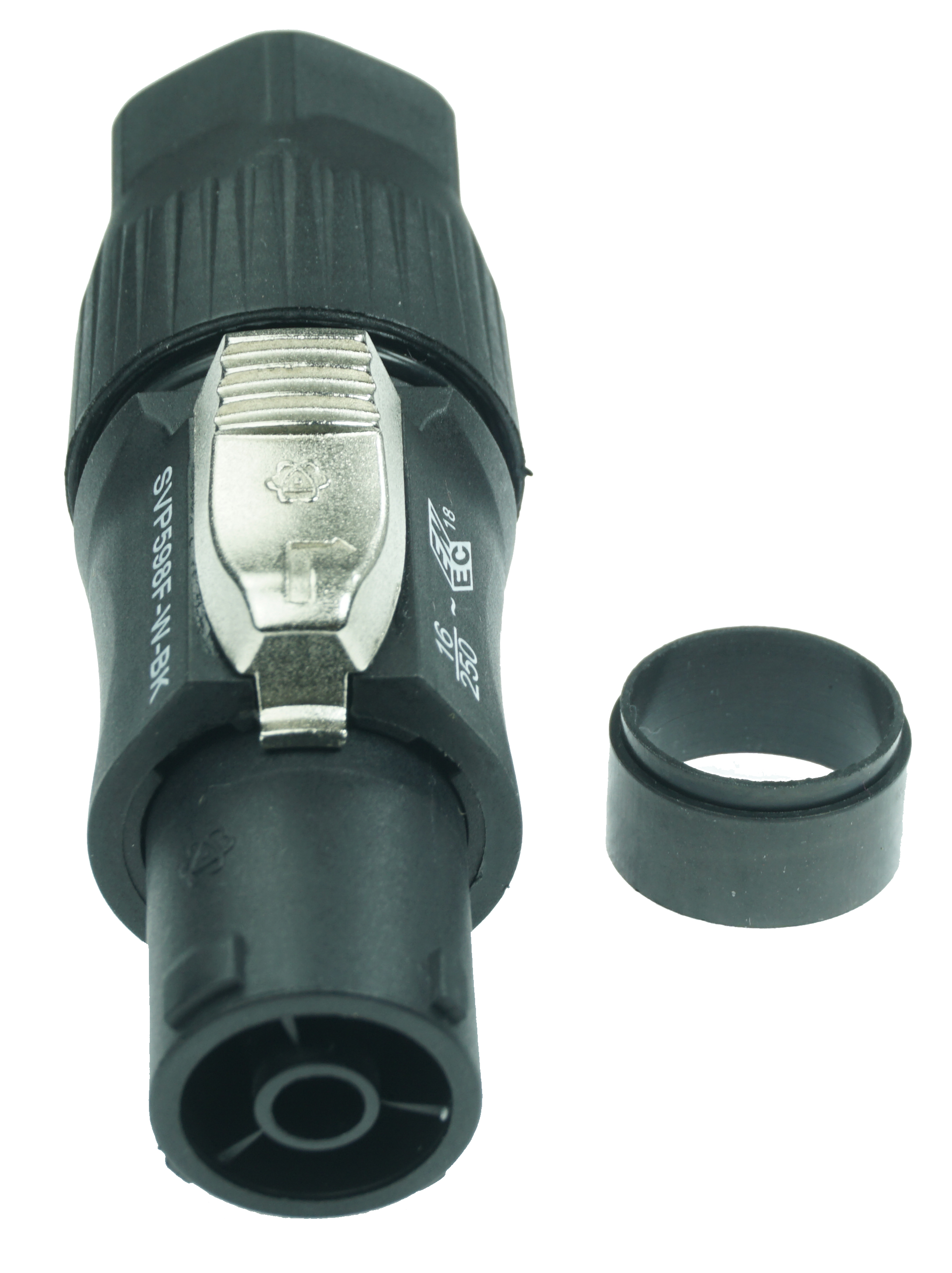

•16A Power In Female Connector • With two cable clamp ring • M size for O.D.: Ø8.5~11mm(standard) • L size for O.D.: Ø12~15mm •ENEC certified according to IEC 60302-1 •CBC current breaking capacity •Single-phase currents up to 16A and for voltages up to 250V. •Screw push-pull copper block stamping contact body structure •PE pin priority retardant grade •IP65 rate for dust and water resistant •94V-0/HB flame retardant grade
Series:
PO-Serie
Version (Plug / Chassis):
Chassis version
Connector type:
Power
Connection mode:
Push-button latch
Number of contacts:
3
Connector housing color:
Nickel
Cable connection size min. in AWG:
12 AWG
Wiring mode:
Solder contact
Number of mounting holes:
2
Working temperature minimum:
-30°
Working temperature maximum:
+80°
Plug cycle:
≥ 500
IP protection class according to EN60529 2000:
IP65
ROHS according to EN62321-1:
Yes
Country of origin:
China
high voltage rating (VAC):
2500 V
max. Rated current (A):
16 A
Contact resistance:
≤ 3 mΩ
POS packaging:
No
Markets:
Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Lighting, LED exterior display, System integrator, Power supply, power storage, Outdoor lighting
