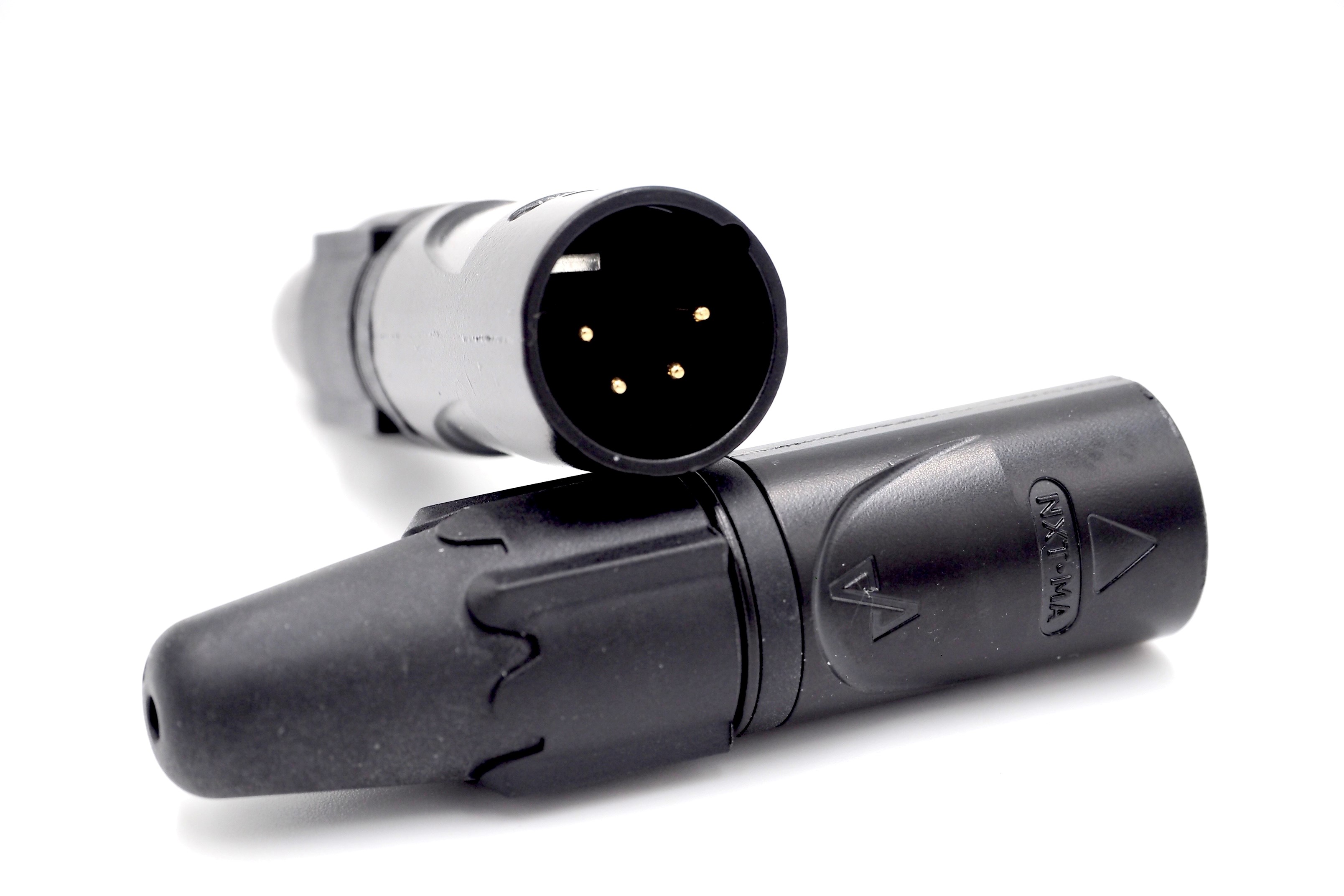

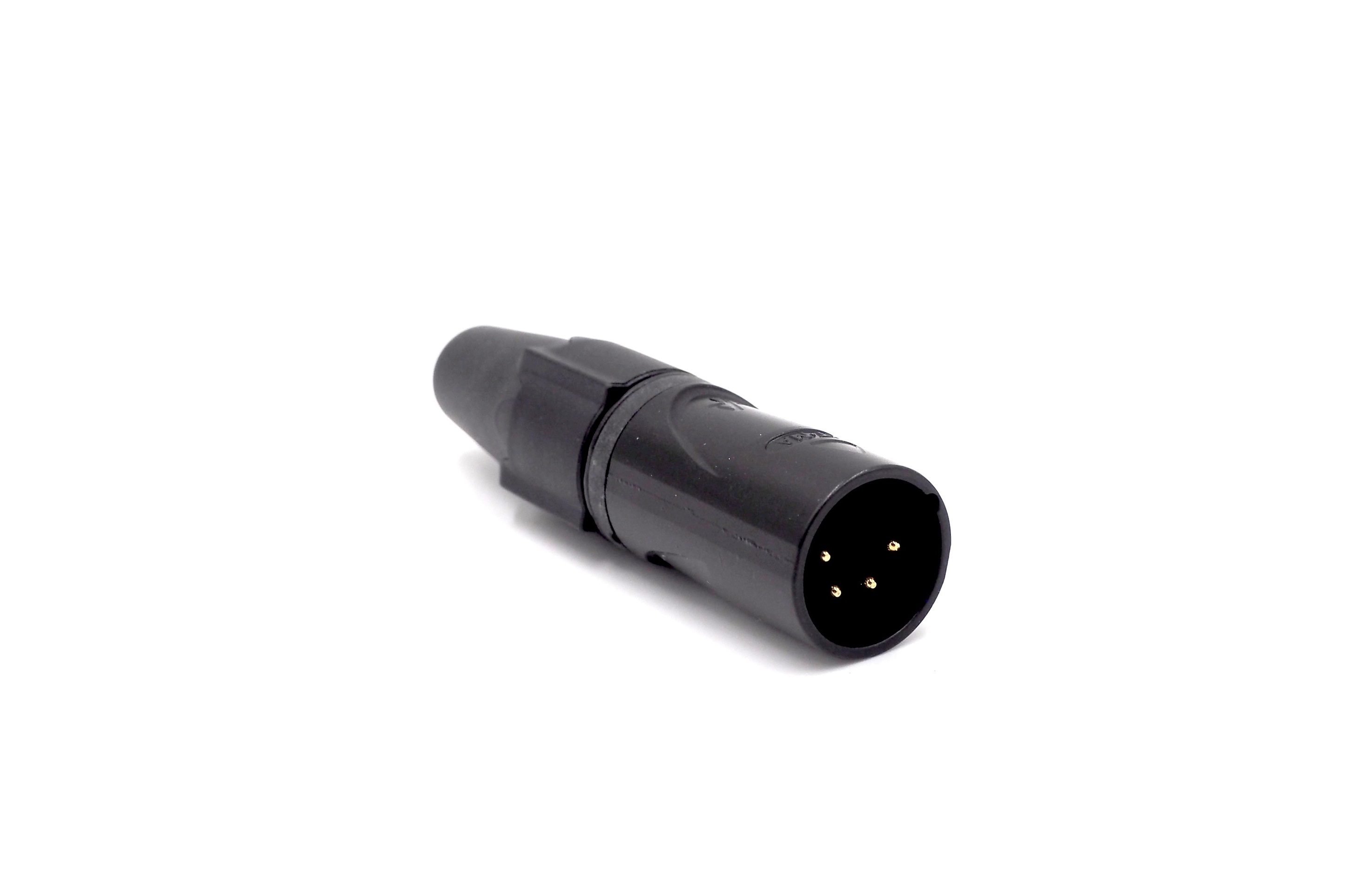

EnovaNxt XLR cable connector male 4-pin, PureCoreNxt black metal housing and black boot

Order number: NXT4MA
protection class: Indoor Pro Audio Connectors
Typ: EnovaNxt XLR 4 PIN Cable Connector male
EAN: 7640383077737

The EnovaNxt XLR cable connector is an innovative, 4-pin connector that was developed... more

Product information "EnovaNxt XLR cable connector male 4-pin, PureCoreNxt black metal housing and black boot"

The EnovaNxt XLR cable connector is an innovative, 4-pin connector that was developed using the patented "True Mold" technology of the Swiss start-up Enova Solutions AG and is manufactured in Austria.

Thanks to the matt black metal housing and the high-quality PureCoreNxt surface treatment, the connector offers both a high-end design and a long service life. The advanced die-cast technology ensures a shatterproof locking window and minimizes maintenance, making the plug ideal for stage use.

The 4-pin connector is versatile and suitable for both microphones and other audio equipment. The intuitive handling enables quick connection and disconnection, so that no time is lost even with changing applications and spontaneous performances.

Thanks to its sophisticated design and first-class workmanship, the EnovaNxt XLR cable connector is not just a technical tool, but also a stylish accessory that looks great in any setup. Ideal for musicians, sound engineers and audio professionals who value quality and reliability.

Brand:	EnovaNxt
Connector type:	XLR male 4 pol, XLR
Connection mode:	Latch
Number of contacts:	4
Gender (M / F):	Male plug
Connector housing color:	Black
Cable diameter min. in mm:	3.0
Cable diameter max. in mm:	8.0
Wire size:	max. 16AWG
Wiring mode:	Solder contact
Material connector housing:	ZnAl4Cu1
Material contact:	Bronze
Working temperature minimum:	-30°
Working temperature maximum:	+80°
Plug cycle:	1000
Classification flammability of plastics:	UL94-V0
ROHS according to EN62321-1:	Yes
Country of origin:	Österreich/Austria
Operating voltage (VAC.RMS):	< 50 V
Insulation resistance:	> 10 GΩ
Contact resistance:	≤ 3 mΩ
Applications:	DJ, Keyboard player, Lighting technician, Singer, Sound engineer
Markets:	Event Production, Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, Digital signage, Cable Assembly, Lighting, System integrator, Outdoor lighting, Broadcast, Recording studio
