- Order number: NXT-I1-PLMM2-3
- protection class: Instrument cable Indoor
- Typ: Jack 6.3 mm 2 pin to jack 6.3 mm 2 pin
- EAN: 7640383076495
High quality and flexible instrument cable with True Mold technology
Connector side A:... more
Product information "3 m instrument cable - 6.3 mm jack mono with True Mold technology"
High quality and flexible instrument cable with True Mold technology

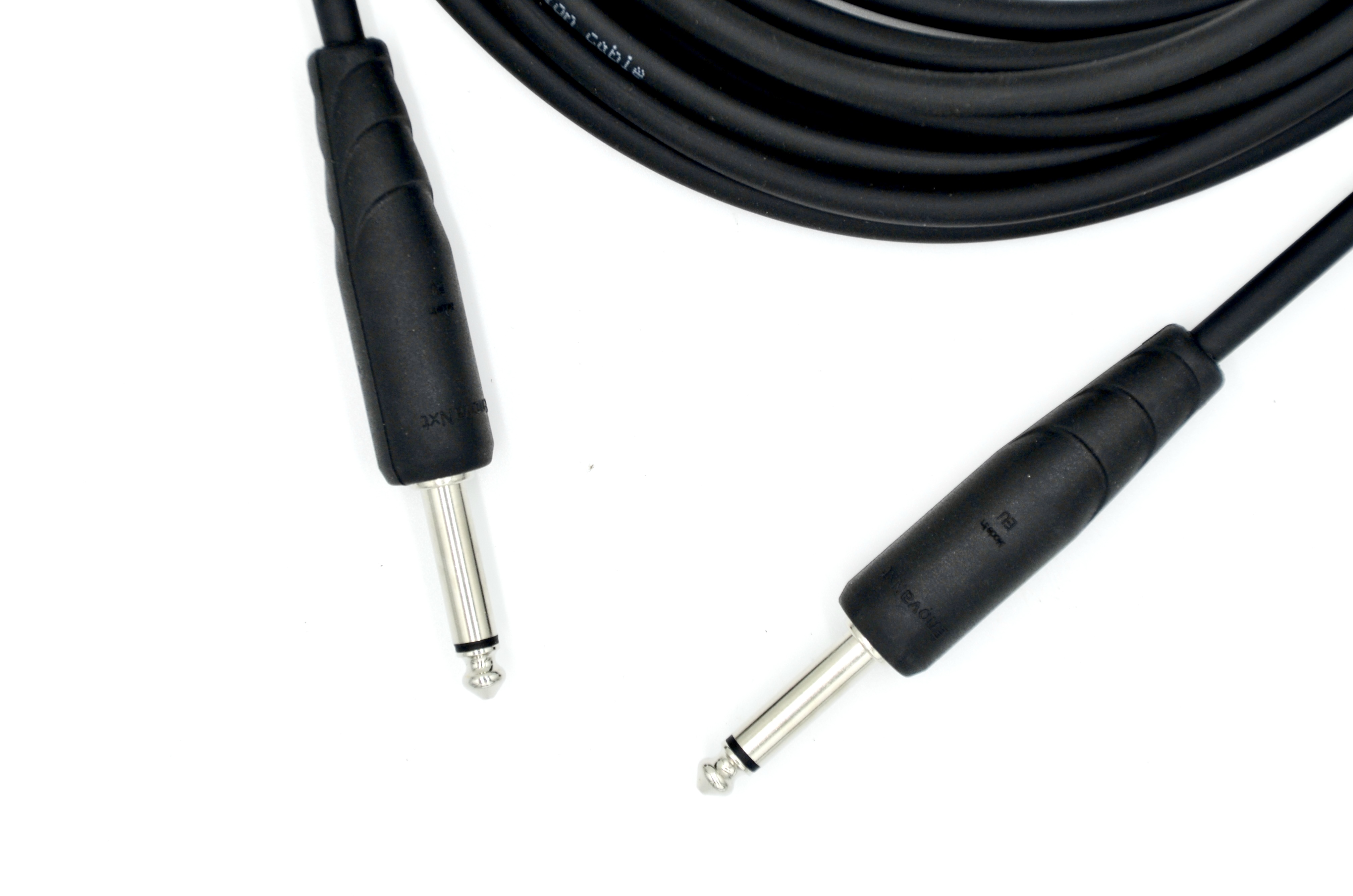

Connector side A: EnovaNxt 1/4" jack 2 pin
Connector side B: EnovaNxt 1/4" jack 2 pin

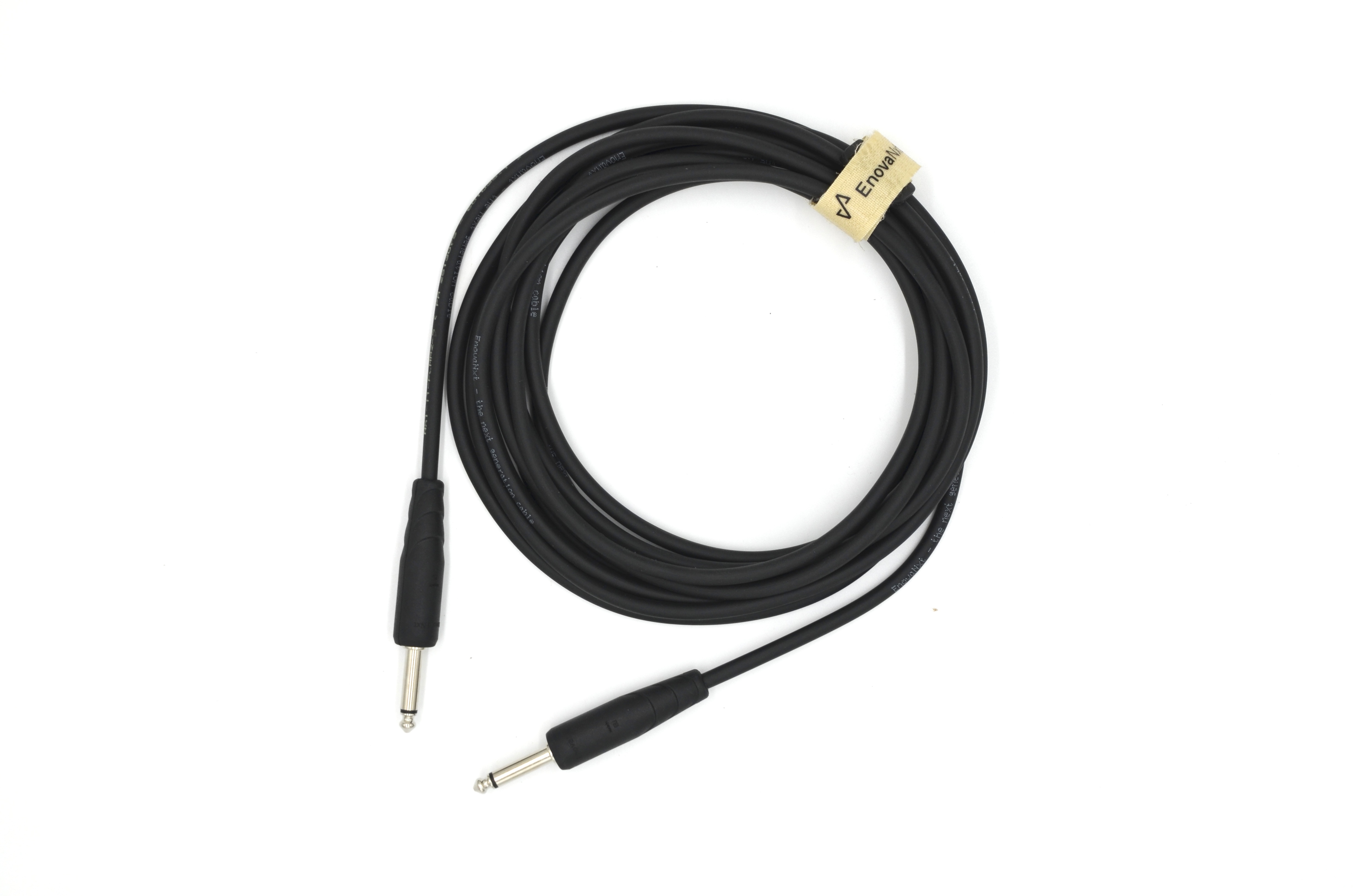

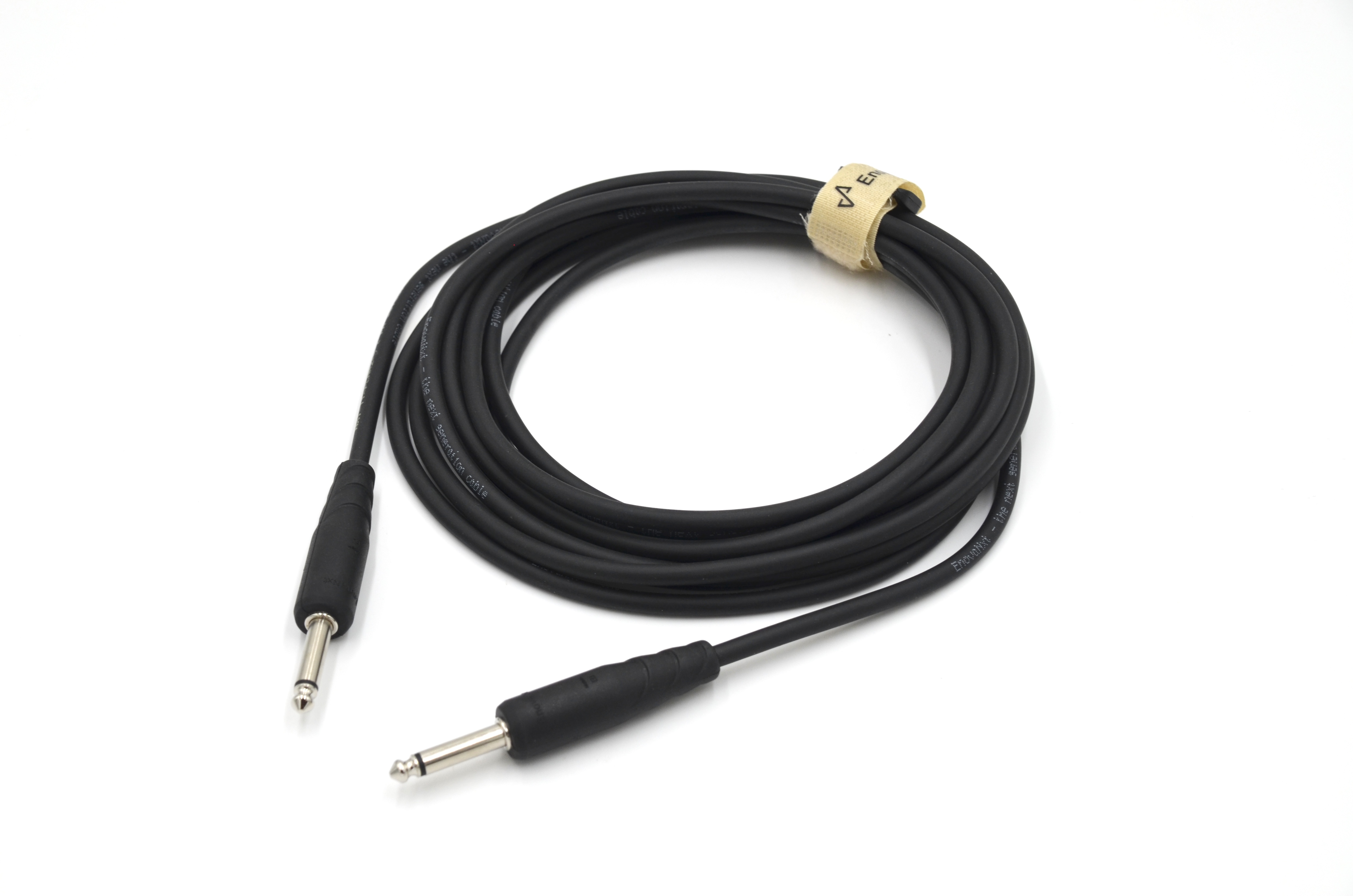

Cable length: 3 meters
Features & Benefits
- Excellent sound transmission thanks to high-quality components
- 360° metal strain relief, reducing the strain on the soldering contacts
- Design for harsh on-stage applications for a long-lasting use
- Bending protection for a smooth cable exit at the connector end
- Moisture protection thanks to True Mold technology
- Individual connector parts and cable merge into a fully integrated product
Brand: | EnovaNxt |
Series: | I1 |
Version (Plug / Chassis): | Cable Version |
Connector type: | 1/4 Jack, 1/4 Jack 2 pol |
Cable type: | 1/4" Plug - 1/4" Plug |
Number of contacts: | 2 |
Gender (M / F): | Cable male to male |
Connector housing color: | Black |
Cable surface color: | Black |
Cable length: | 3 meters |
Cable diameter: | Ø 5.9 mm |
Wire size: | Ø 24 AWG 0.22 mm |
Wiring mode: | Solder contact |
Material connector housing: | ZnAl4Cu1 Overmold |
Material contact: | PA66 |
Plug cycle: | 5000 |
ROHS according to EN62321-1: | Yes |
Country of origin: | EU |
Operating voltage (VAC.RMS): | < 50 V |
max. Rated current (A): | depending on mating connector |

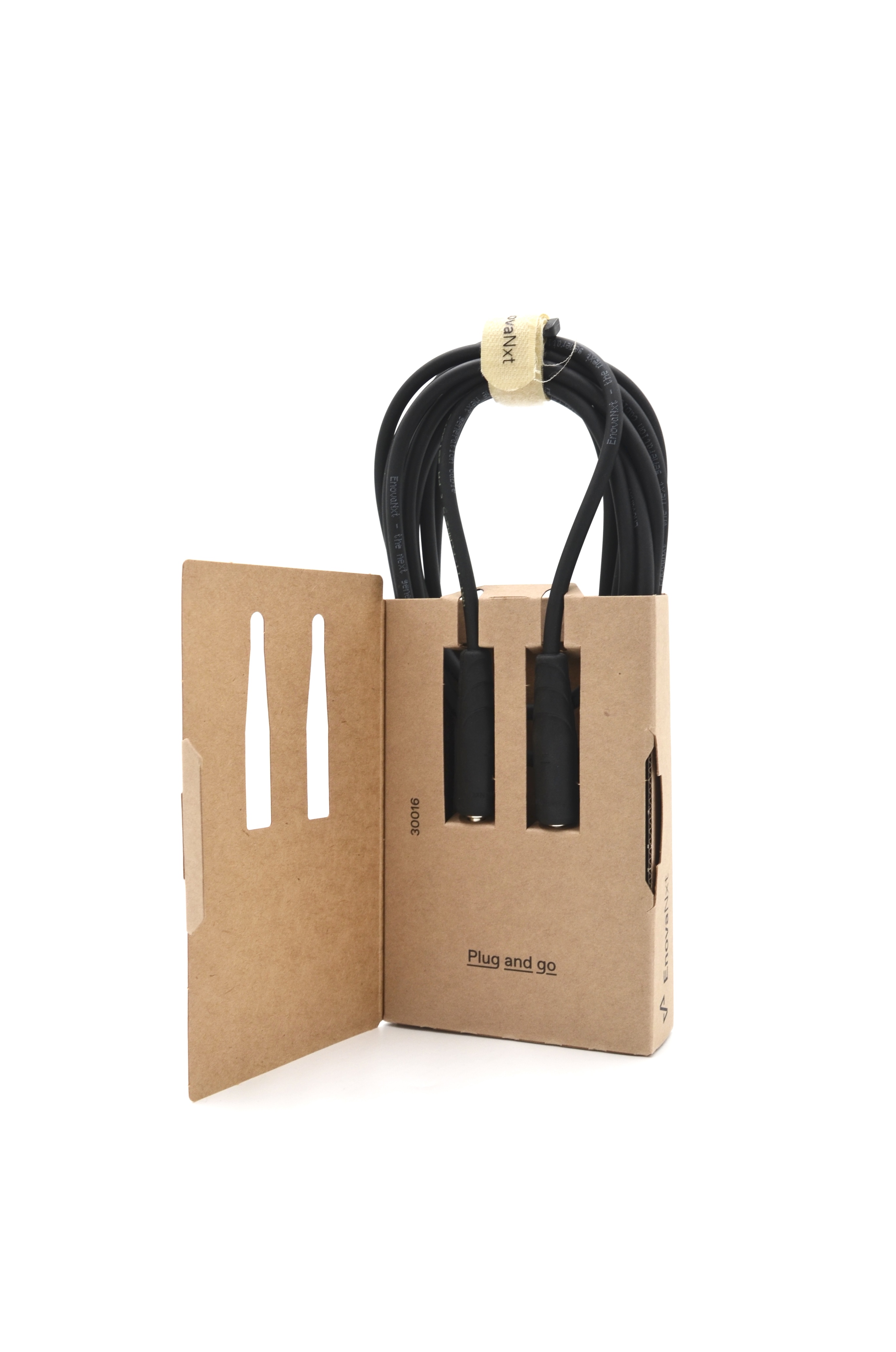

POS packaging: | Yes |
Applications: | Bass player, DJ, Guitar player, Keyboard player |
